ATV TRACKS (up to 2,500 lbs GVW)

EZ ATV ECONOMY LINE

GCSA 2,361 sq in
Track Width 13"
Tread Height 1⅜"
Frame Aluminum
Suspension N/A
Sprositive Drive No
Price
Complete EZ Specsheet
View EZ Series

XT

GCSA 1,716 sq in
Track Width 11"
Tread Height 1"
Frame Aluminum
Suspension Shape-Changing, 2 link
Sprositive Drive Optional
Price
Complete XT Specsheet
View XT Series

M3

GCSA 2,184 sq in
Track Width 13"
Tread Height 1¾"
Frame Aluminum
Suspension Shape-Changing, 2 link
Sprositive Drive Optional
Price
Complete M3 Specsheet
View M3 Series

UTV TRACKS (up to 3,500 lbs GVW)

EZ UTV ECONOMY LINE

GCSA 2,525 sq in
Track Width 13"
Tread Height 1⅜"
Frame Aluminum
Suspension N/A
Sprositive Drive Optional
Price
Complete EZ UTV Specsheet
View EZ Series

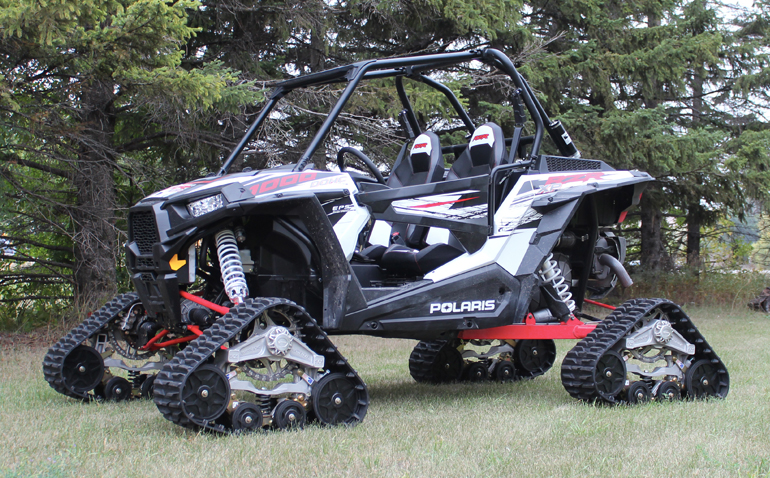

XT UR

GCSA 1,716 sq in
Track Width 11"
Tread Height 1"
Frame Aluminum
Suspension Shape-Changing, 4 link
Sprositive Drive Optional
Price
Complete XT UR Specsheet
View XT Series

M3 UR

GCSA 2,184 sq in
Track Width 13"
Tread Height 1¾"
Frame Aluminum
Suspension Shape-Changing, 4 link
Sprositive Drive Optional
Price
Complete M3 UR Specsheet
View M3 Series

UTV TRACKS (up to 4,200 lbs GVW)

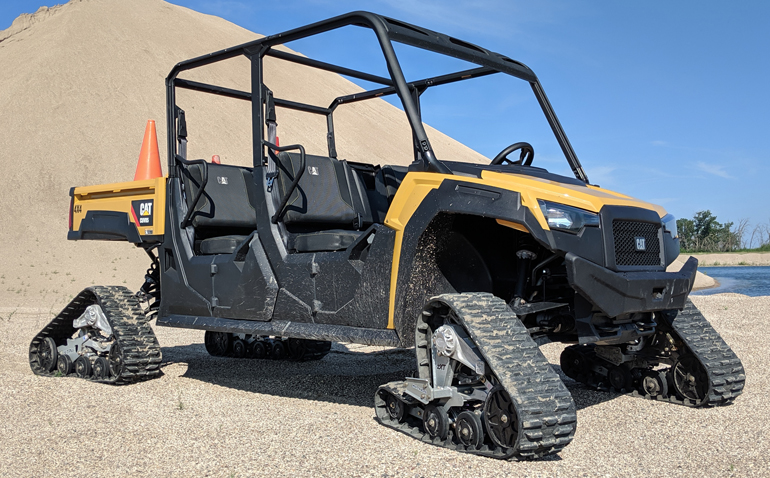

XT UR HD

GCSA 1,716 sq in
Track Width 11"
Tread Height 1"
Frame Aluminum
Suspension Shape-Changing, 4 link
Sprositive Drive Optional
Price
Complete XT UR HD Specsheet
View XT Series

M3 UR HD

GCSA 2,184 sq in
Track Width 13"
Tread Height 1¾"
Frame Aluminum
Suspension Shape-Changing, 4 link
Sprositive Drive Optional
Price
Complete M3 UR HD Specsheet
View M3 Series

UTV/SMALL SUV TRACKS (up to 5,500 lbs GVW)

EZ HD ECONOMY LINE

GCSA 2,380 sq in
Track Width 13"
Tread Height 1⅜"
Frame Steel
Suspension N/A
Sprositive Drive N/A
Price
Complete EZ HD Specsheet
View EZ Series

65M1-A1

GCSA 2,700 sq in
Track Width 15"
Tread Height 1"
Frame Steel
Suspension Rockers
Sprositive Drive N/A
Price
Complete 65M1-A1 Specsheet
View 65 Series

65M1-A1 TC

GCSA Bobcat Toolcat
Track Width 15"
Tread Height 1"
Frame Steel
Suspension Rockers
Sprositive Drive N/A
Price
Complete 65M1-A1 TC Specsheet
View 65 Series

TRUCK TRACKS

88 SERIES UTV/Small SUV

GVW 8,800 lbs
GCSA 3,776 sq in
Track Width 16"
Frame Steel
Suspension Optional
Steering Assist Optional
View 88 Series

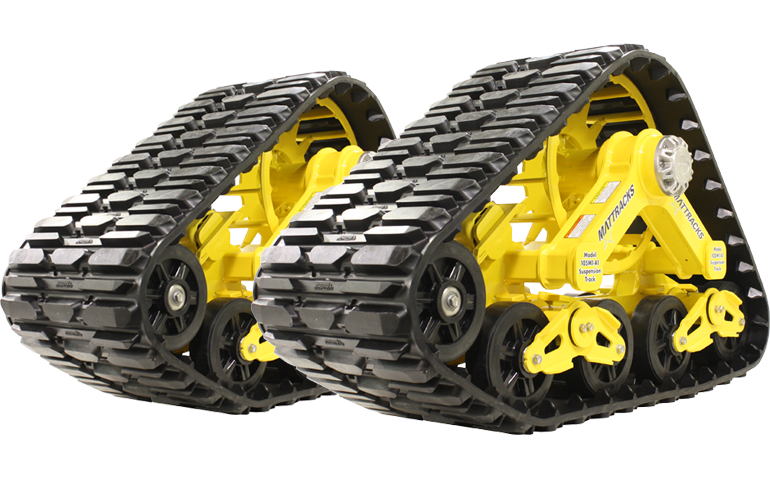

105 SERIES Light Duty

GVW 10,500 lbs
GCSA 3,776 sq in
Track Width 16"
Frame Steel/Aluminum
Suspension Optional
Steering Assist Optional
View 105 Series

150 SERIES Medium Duty

GVW 12,500 lbs
GCSA 3,776 sq in
Track Width 16"
Frame Steel/Aluminum
Suspension Optional
Steering Assist Optional
View 150 Series

175 SERIES Heavy Duty

GVW 15,000 lbs
GCSA 4,536 sq in
Track Width 18"
Frame Steel
Suspension Yes
Steering Assist Optional
View 175 Series

200 SERIES Extra Heavy Duty

GVW 21,000 lbs
GCSA 5,688 sq in
Track Width 18"
Frame Steel
Suspension Yes
Steering Assist Optional
View 200 Series

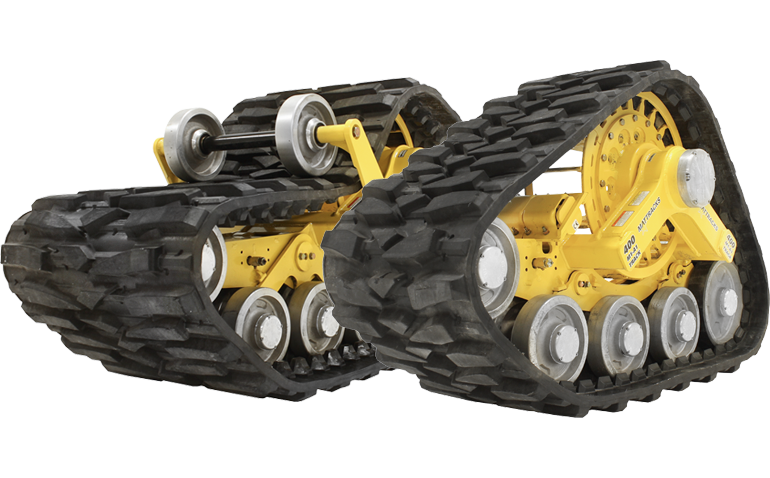

400 SERIES Commercial

GVW 40,000 lbs
GCSA 6,380 sq in
Track Width Front: 18" / Rear: 30"
Frame Steel
Suspension Yes
Steering Assist Yes
View 400 Series

AGRICULTURE/COMMERCIAL TRACKS FOUR-WHEEL DRIVE WITH FRONT WHEEL ASSIST

3500

GVW 7,000 lbs
GCSA 2,456 sq in
Track Width Front: 11" / Rear: 16"
Frame Steel
Suspension YesA
View 3k Series

5000

GVW 12,750 lbs
GCSA 3,648 sq in
Track Width 16"
Frame Steel
Suspension Yes
View 5k Series

6000

GVW 14,250 lbs
GCSA 3,648 sq in
Track Width Front: 16" / Rear: 18"
Frame Steel
Suspension Yes
View 6k Series

7000

GVW 18,900 lbs
GCSA 4,248 sq in
Track Width 18"
Frame Steel
Suspension Yes
View 7k Series

8000

GVW 23,000 lbs
GCSA 4,752 sq in
Track Width 18"
Frame Steel
Suspension Yes
View 8k Series

AGRICULTURE/COMMERCIAL TRACKS FOUR-WHEEL DRIVE

3535

GVW 11,500 lbs
GCSA 3,328 sq in
Track Width 16"
Frame Steel
Suspension Yes
View 3k Series

5050

GVW 14,000 lbs
GCSA 3,968 sq in
Track Width 16"
Frame Steel
Suspension Yes
View 5k Series

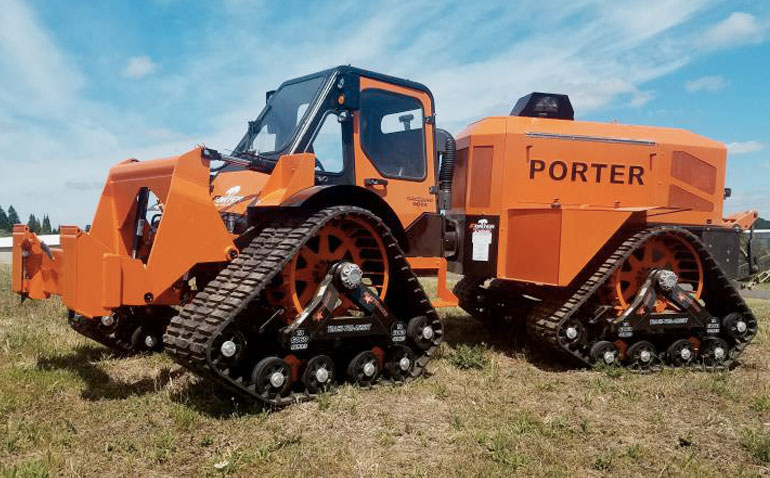

6060

GVW 17,000 lbs
GCSA 4,032 sq in
Track Width 18"
Frame Steel
Suspension Yes
View 6k Series

7070

GVW 21,000 lbs
GCSA 4,464 sq in
Track Width 18"
Frame Steel
Suspension Yes
View 7k Series

8080

GVW 25,000 lbs
GCSA 5,040 sq in
Track Width 18"
Frame Steel
Suspension Yes
View 8k Series

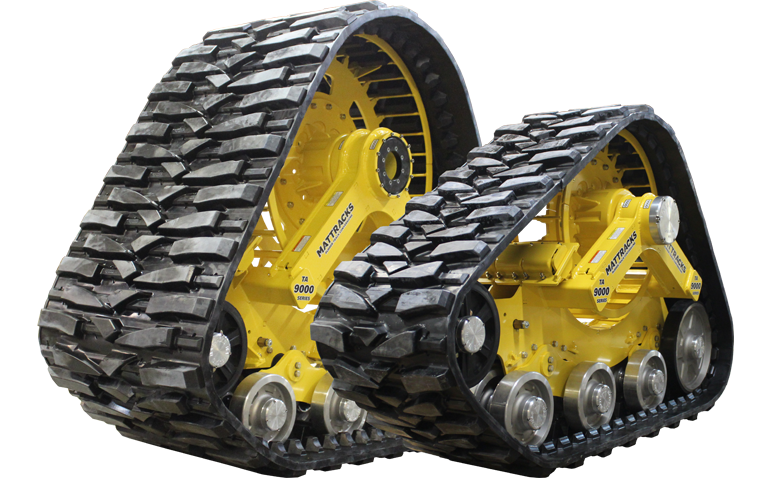

9000

GVW Greater than 25,000 lbs
GCSA Varies
Track Width 15", 20", 24", 30"
Frame Steel
Suspension Yes
View 9k Series

NON-DRIVEN TRACKS

ATV Trail-R-Mate

GVW 1,200 lbs
GCSA 924 sq in
Track Width 11"
Frame Steel
Suspension Yes
View Trail-R-Mate Series

65 Trail-R-Mate

GVW 4,000 lbs
GCSA 1,329 sq in
Track Width 15"
Frame Steel
Suspension Yes
View Trail-R-Mate Series

Standard Trail-R-Mate

GVW 8,000 lbs
GCSA 1,632 sq in
Track Width 16"
Frame Steel
Suspension Yes
View Trail-R-Mate Series

Pneumatic Trail-R-Mate

GVW 8,000 lbs
GCSA 1,888 sq in
Track Width 18"
Frame Steel
Suspension Yes, Air Ride
View Trail-R-Mate Series

HD Trail-R-Mate

GVW 12,000 lbs
GCSA 2,088 sq in
Track Width 18"
Frame Steel
Suspension Yes
View Trail-R-Mate Series
