NARROW ROW CROP

Specifically designed for narrow row crops. The Mattracks 9000-LM-1010 conversion system features a 9.6" wide rubber track that provides the industry's narrowest profile for row crop application and the flotation to effectively avoid leaving behind deep ruts throughout the process

9000-LM-1010 (Front) Narrow Row Crop

Frame	Steel
GCSA	751.68 in²
Track Width	9.6"
Suspension	Yes

9000-LM-1010 Specsheet

9000-LM-1010 (Rear) Narrow Row Crop

Frame	Steel
GCSA	828.48 in²
Track Width	9.6"
Suspension	Yes

9000-LM-1010 Specsheet

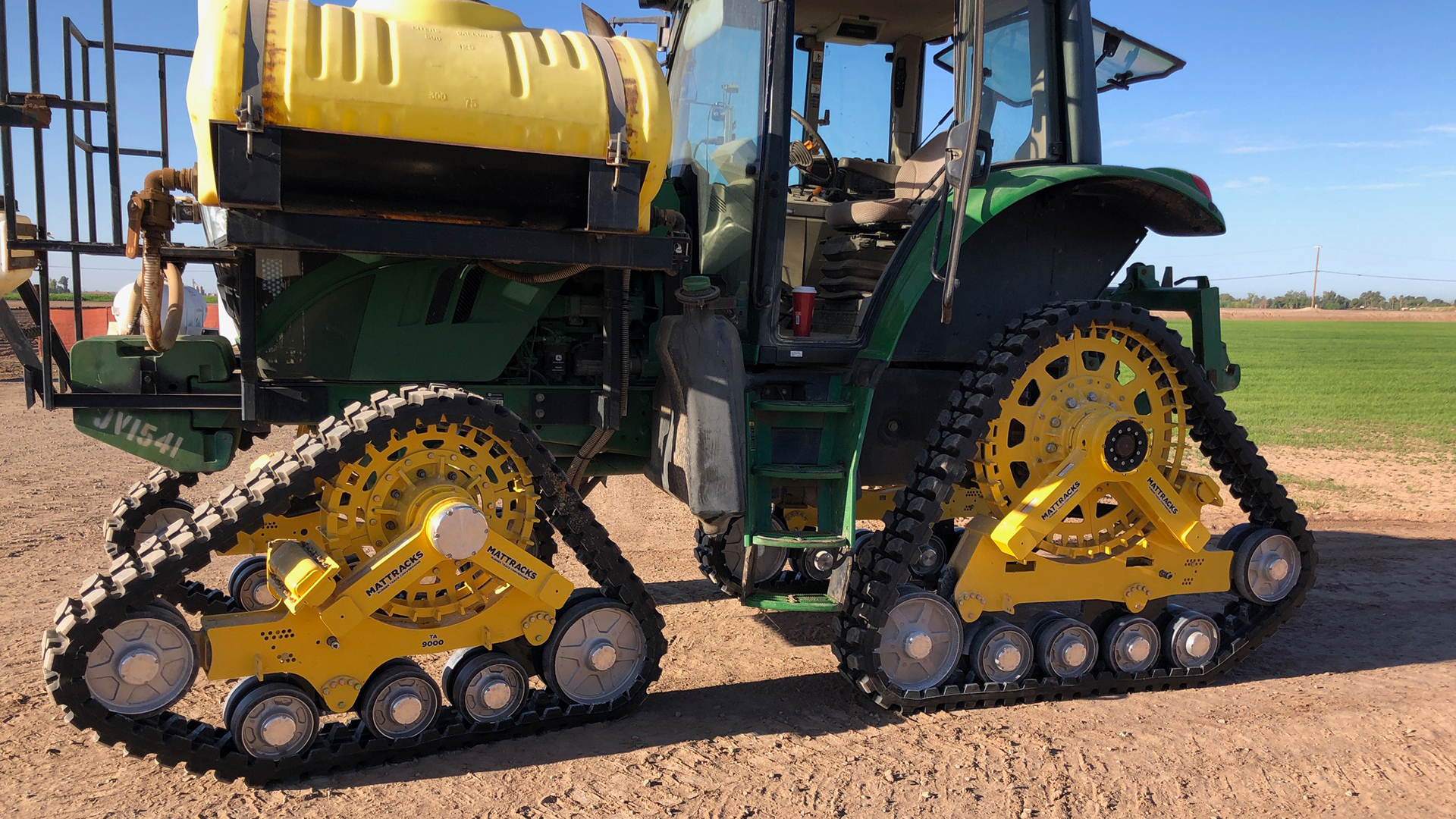

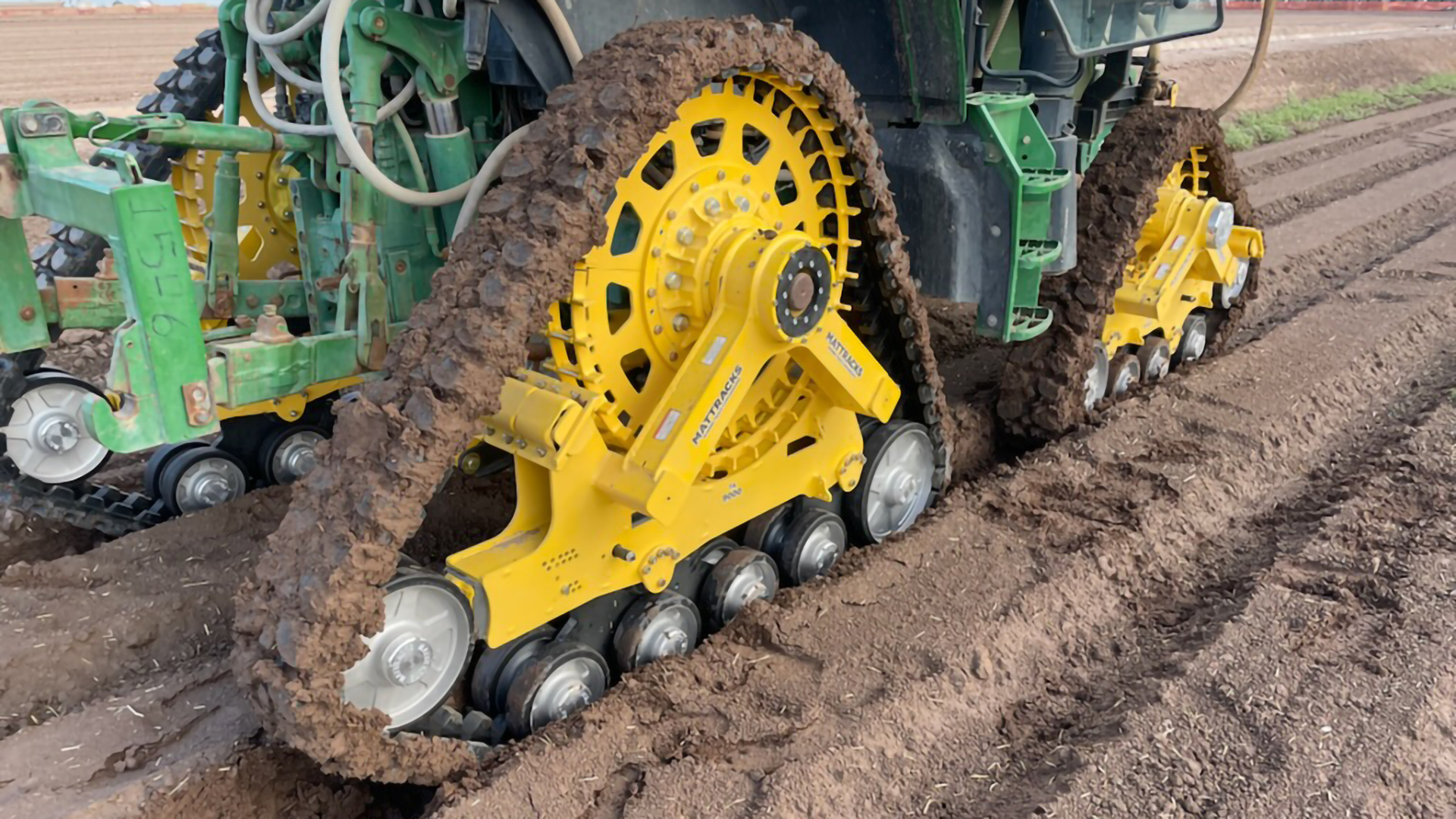

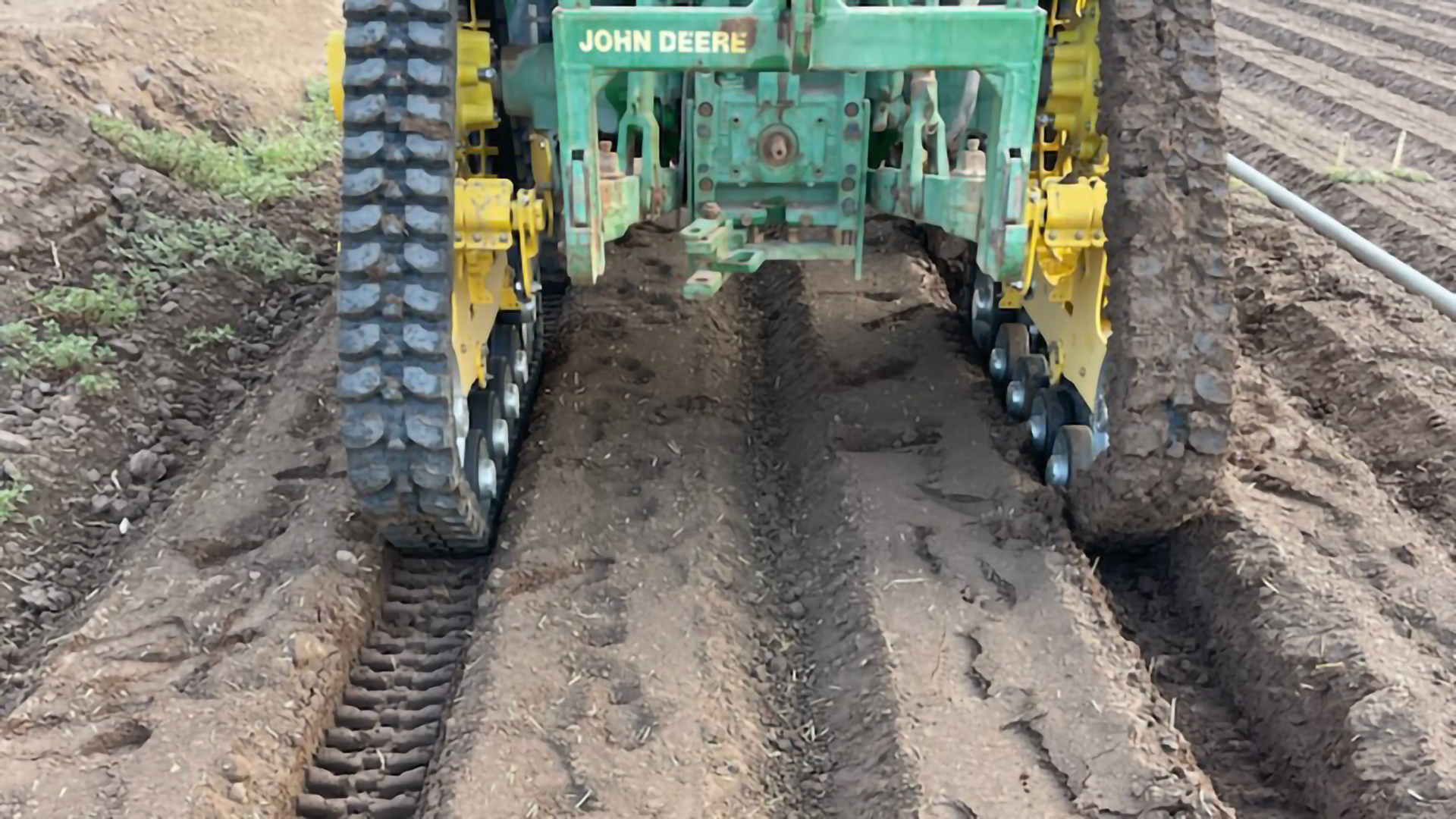

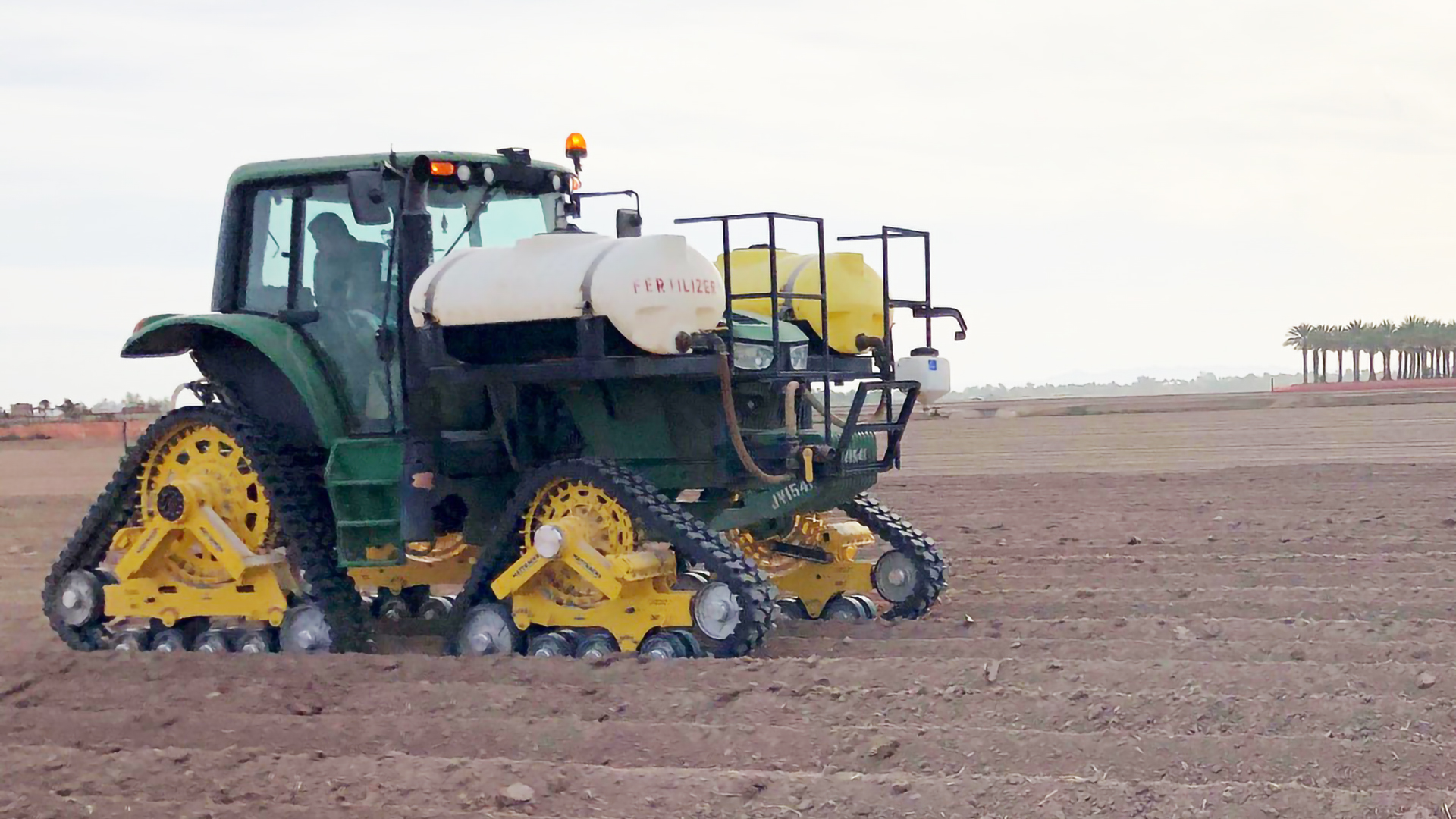

9000-LM-1010 Series Tracks on a John Deere 6125M

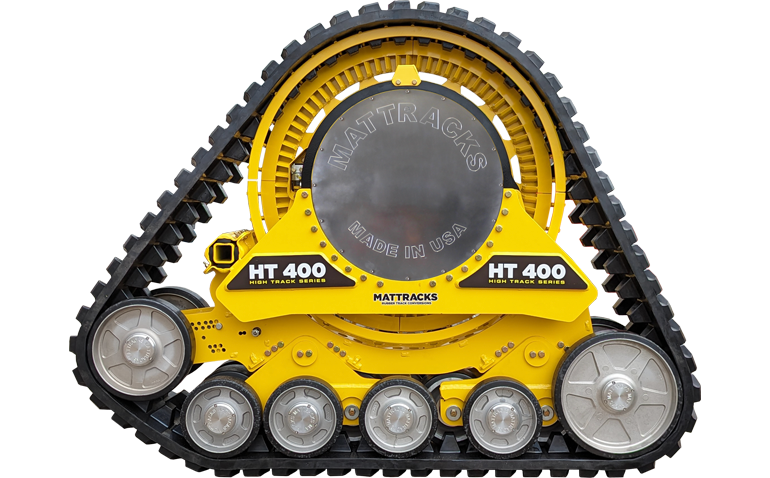

HT 400

The HT 400 is designed for approximately 40,000 lbs gross sprayer weight, most 1,200 gallon and smaller self propelled sprayers

• Cool Track Technology
• Virtually Maintenance free design
• Rubber Mounted Rocker Axles
• Staggered road wheel design to minimize vibration
• 15" track width standard (also available in 20")
• 14 road wheels

9090-AA Series Tracks on a John Deere R4038

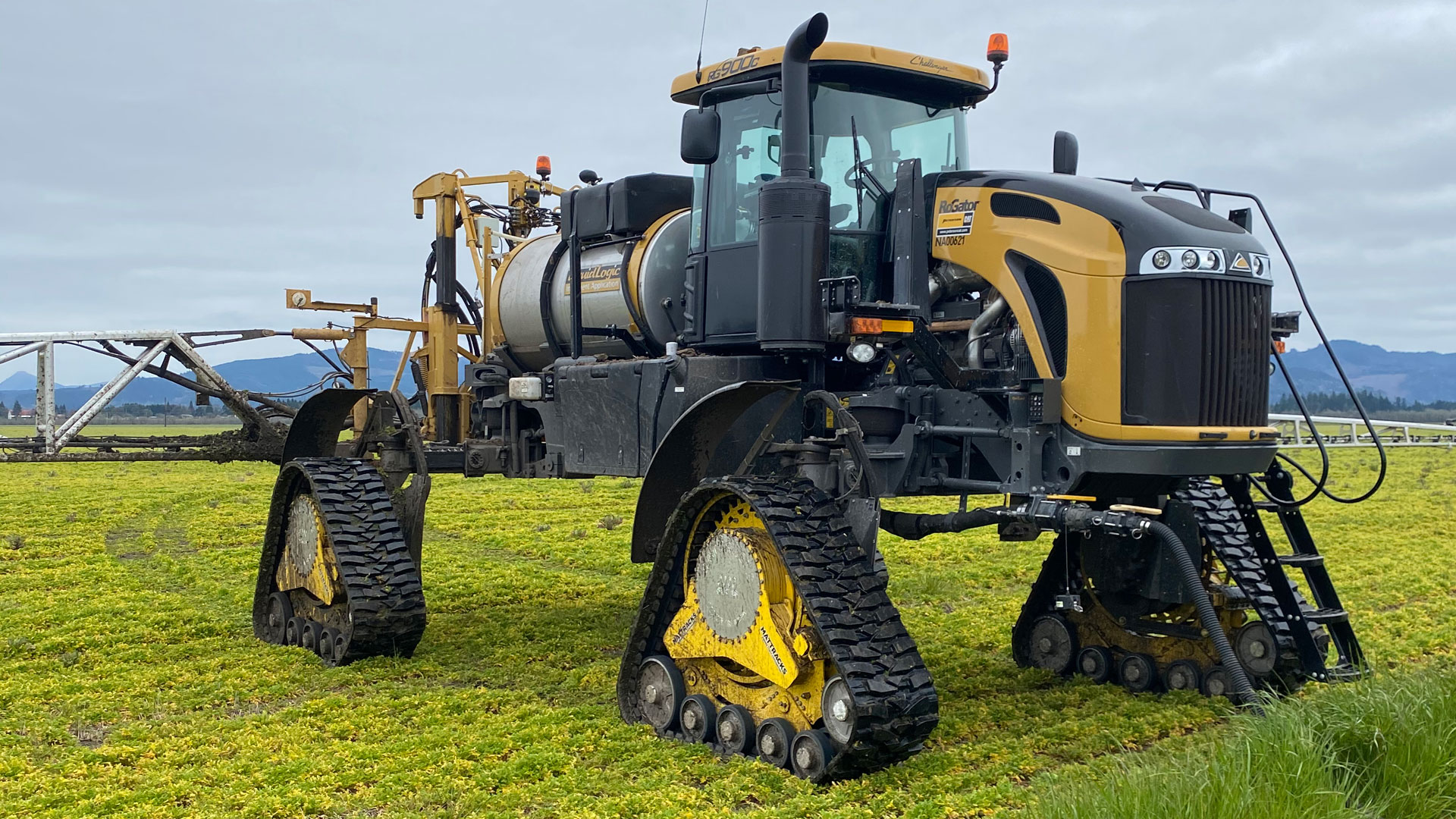

9090-AA Series Tracks on a RoGator RG900C

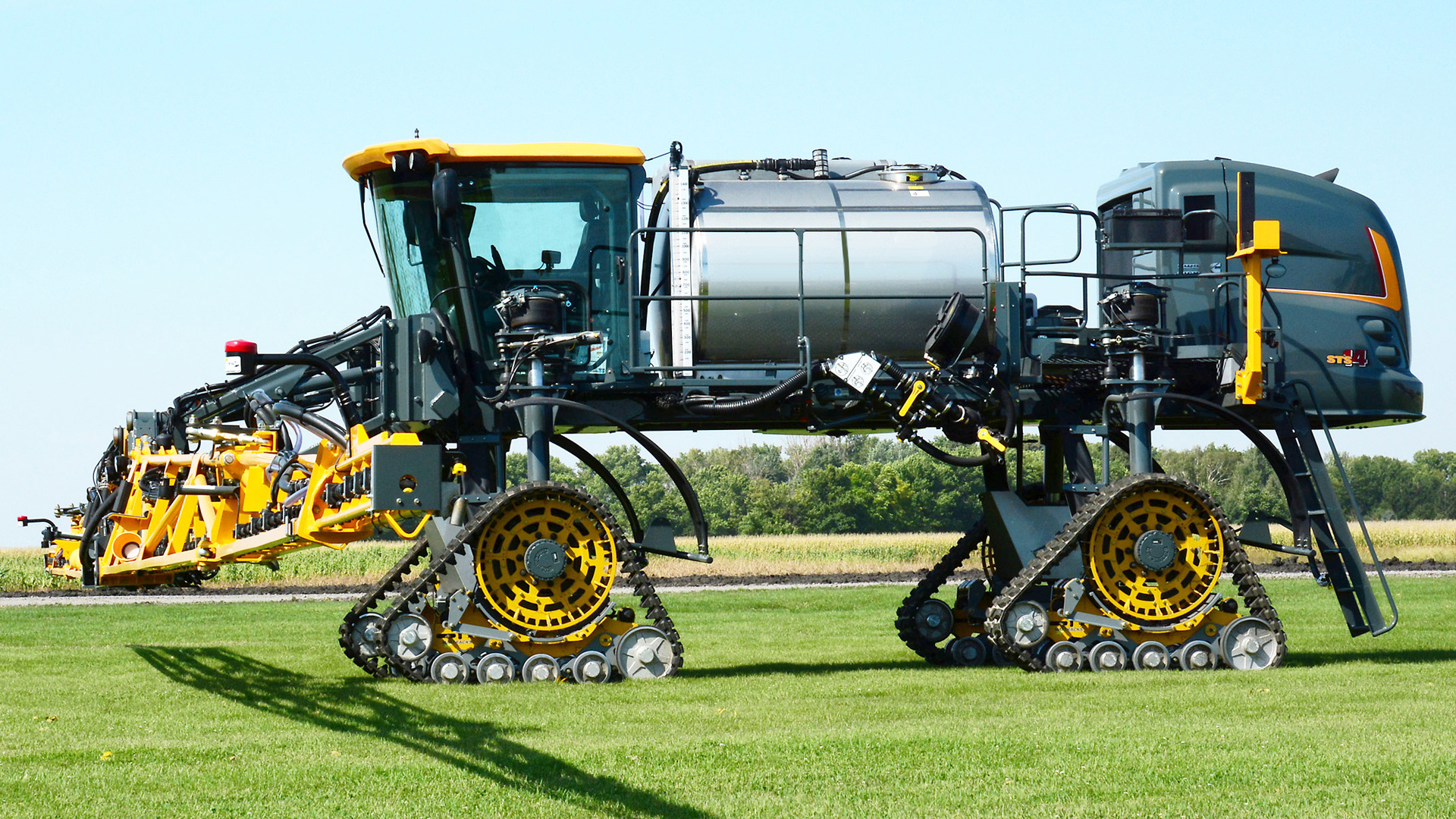

9090-AA Series Tracks on a Hagie Sprayer

HT 500

The HT 500, with its longer tread and increase carrying capacity, is designed for sprayers weighing in at 50,000 lbs fully loaded, or most 1,400 and 1,600 gallon capacity machines

The High Track (HT) Series builds off of Mattracks 10 years of experience in designing and manufacturing tracks for High Clearance Sprayers. The first system was built back in 2014 as the TA8080HD series. A few years later it became part of the Track-tor Assist 9000 series as Mattracks continued to improve on its previous designs. Now with numerous new innovations Mattracks is proud to introduce the HT-400 and HT-500

Mattracks Patent Pending Cool Track Technology (CTT)

Cooling fan integrated into track system to cool and extend life of tread
Automatic Dry Lubricant Applicator for roading on hard pavement

Increased wheel to track contact area compared to older models

Reduces peak pressure on tread, thus reducing heat build up

New and improved internal tread design

Maximizes rubber where needed
Minimize rubber where not needed
Compound improvements to maximize tread life

Virtually Maintenance free design

New increased capacity hub bearing utilizing multi-sealed greased bearing
Improved seal design on idler wheels
Replaced greased rocker axle shafts with rubber mounted design

New Suspension Improvements to minimize vibration and extend life of all components

Staggered road wheels
Independent rocker design with isolated subrocker
Exclusive rubber mounted rocker cross shafts

HT 400 Sprayers

GVW	40,000 lbs
Frame	Steel
GCSA	4,000 in²
Track Width	15" or 20"
Suspension	Yes

HT 400 Specsheet

HT 500 Sprayers

GVW	50,000 lbs
Frame	Steel
GCSA	4,000 in²
Track Width	15" or 20"
Suspension	Yes

HT 500 Specsheet

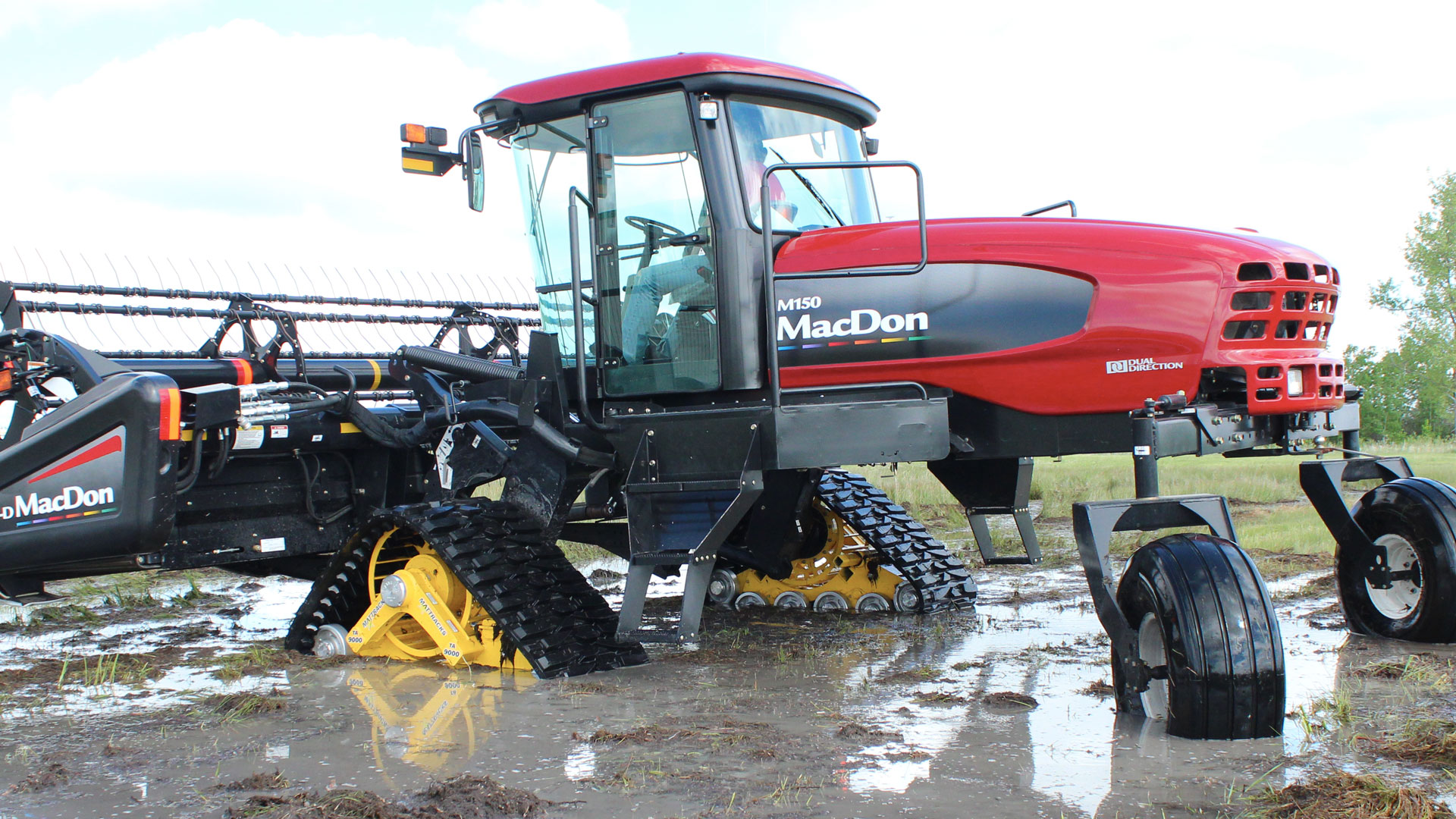

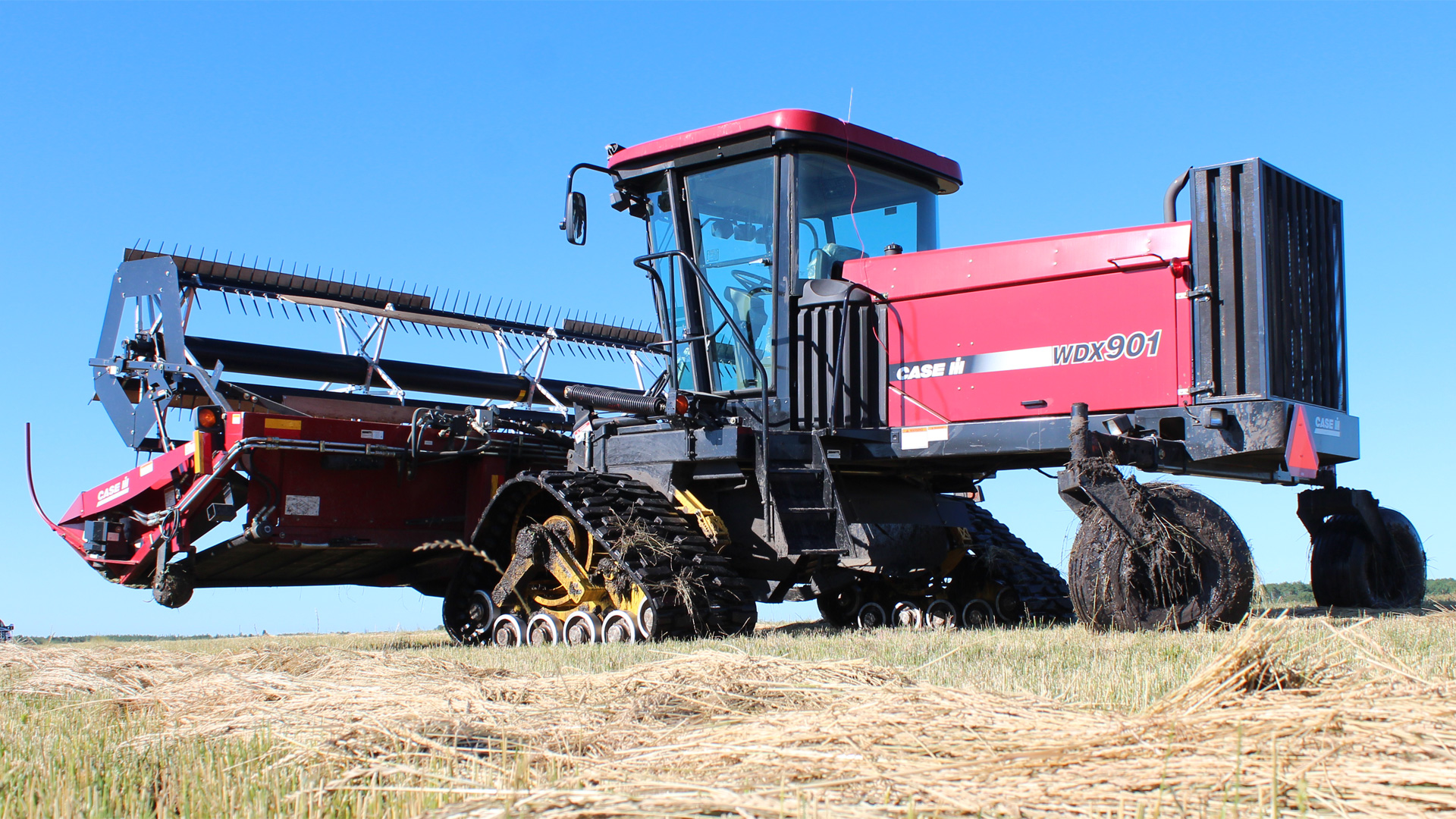

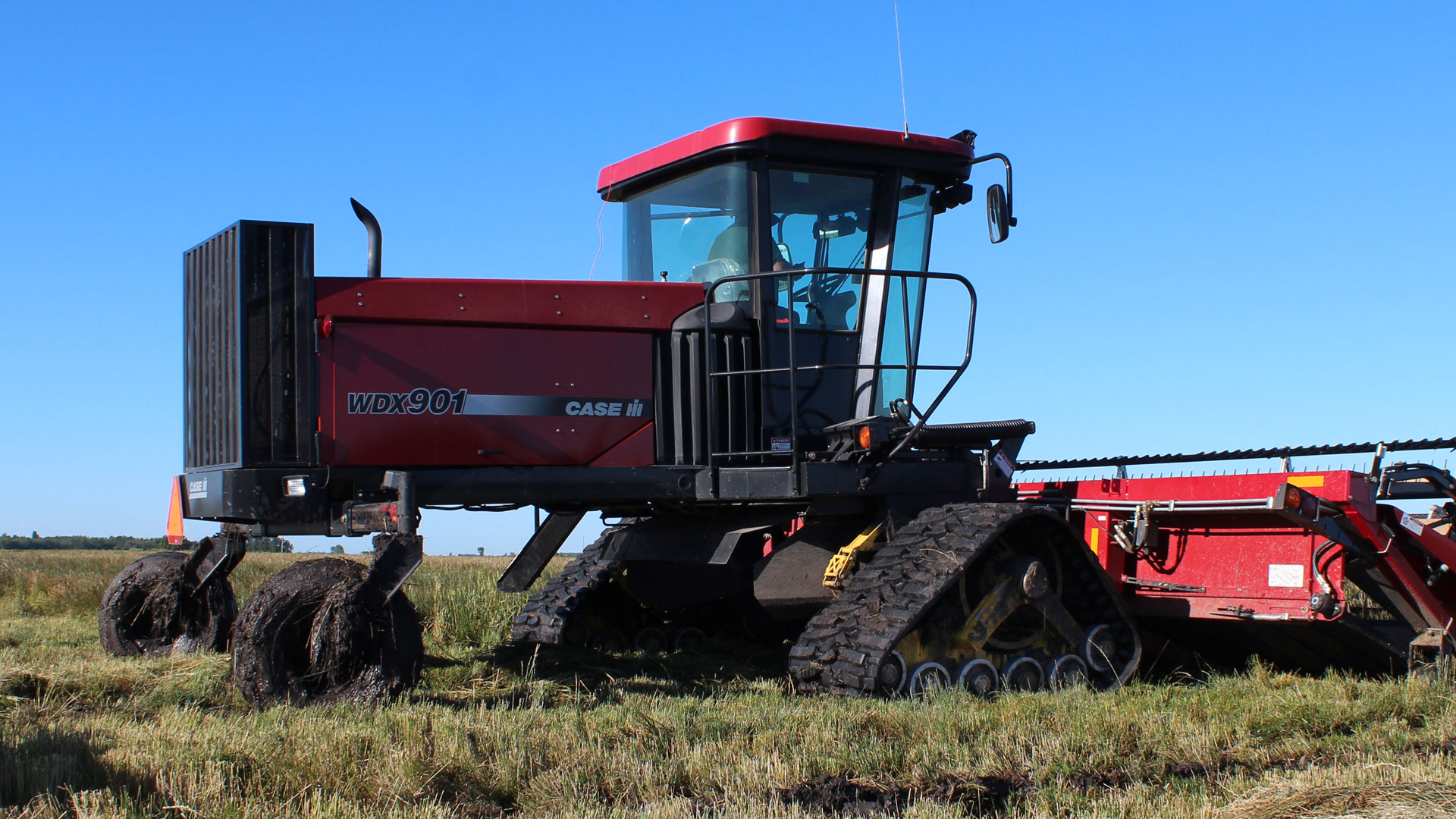

9000-H0

The H0 system is specifically built for Swathers/Windrowers. Track system is designed to give optimum clearance to the header while still offering substantial ground contact. The H0 system has a 30" wide track and has an axle height of 27.5" to closely match the stock tire height

9000-H0 Swathers

GVW	15,000 lbs
Frame	Steel
GCSA	1,689 in²
Track Width	30"
Suspension	Yes

9000-H0 Specsheet

9090-RR

The RR system is designed for heavy machinery, such as telehandlers. Each track corner is rated for 12,500 lbs static loads. Track system has an axle height of 35.7" and the 24" wide track offers over 1,500 in² of ground contact per corner

9090-RR

GVW	50,000 lbs
Frame	Steel
GCSA	6,269 sq in
Track Width	24"
Suspension	Yes

9090-RR Specsheet

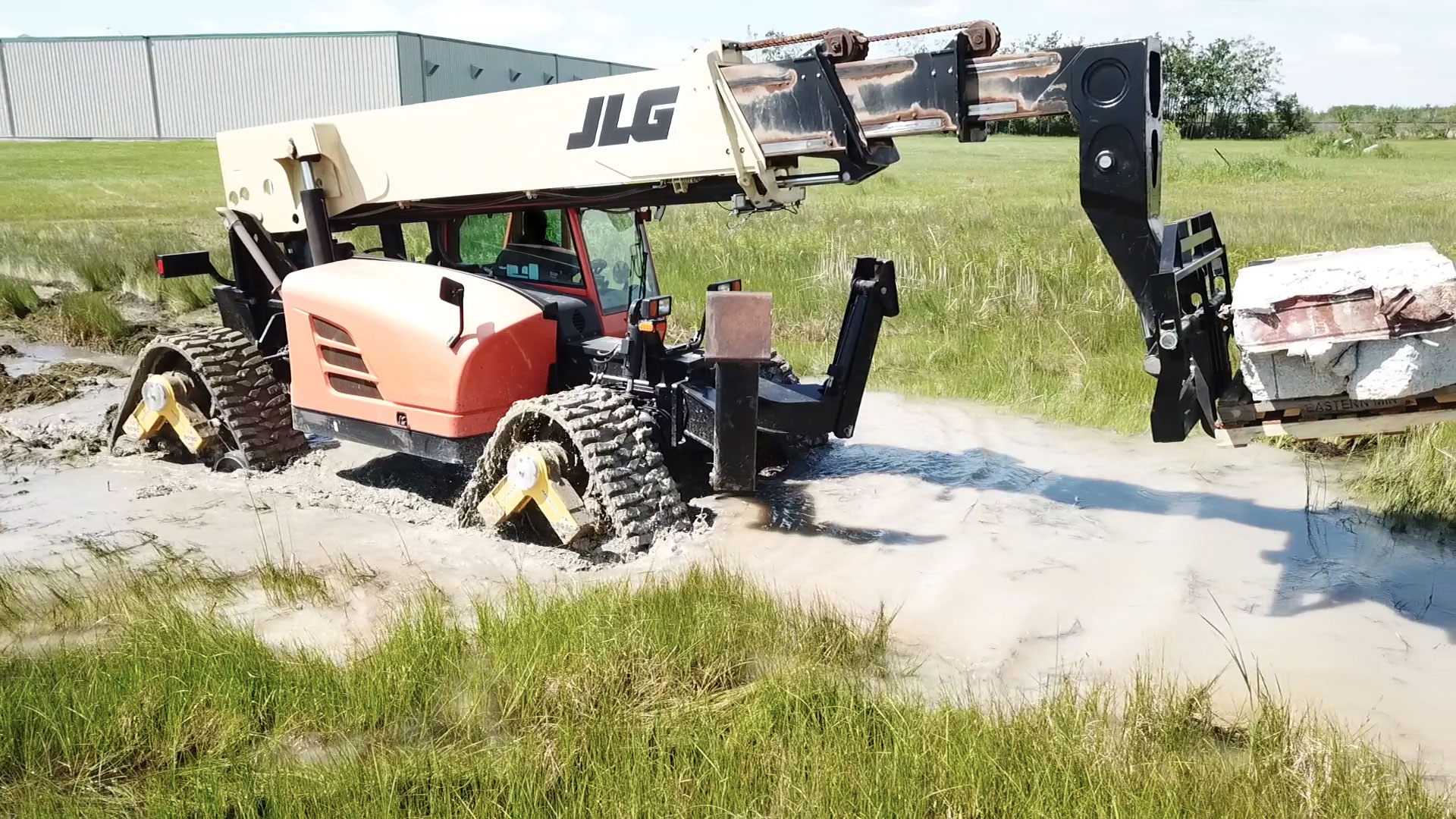

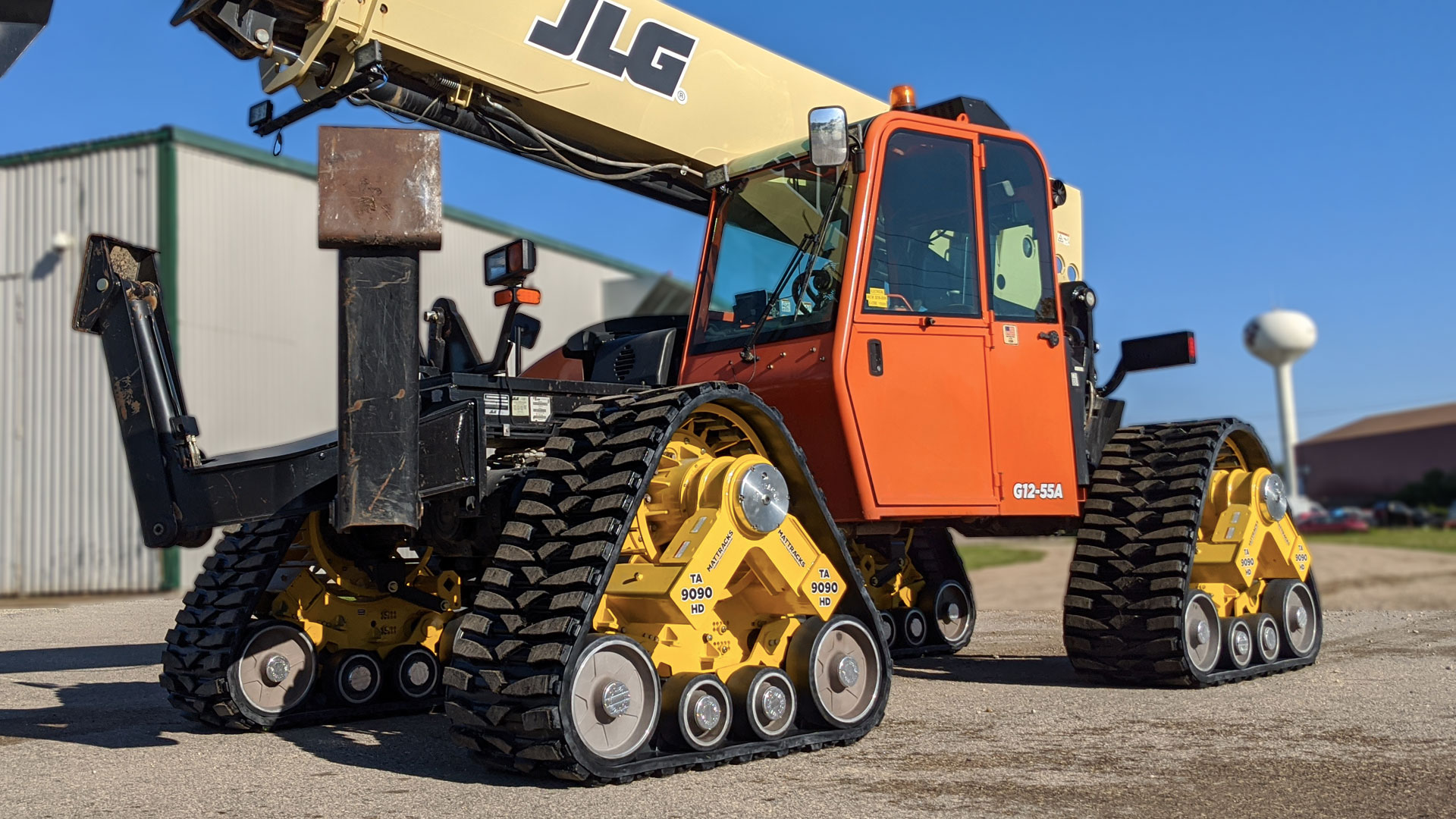

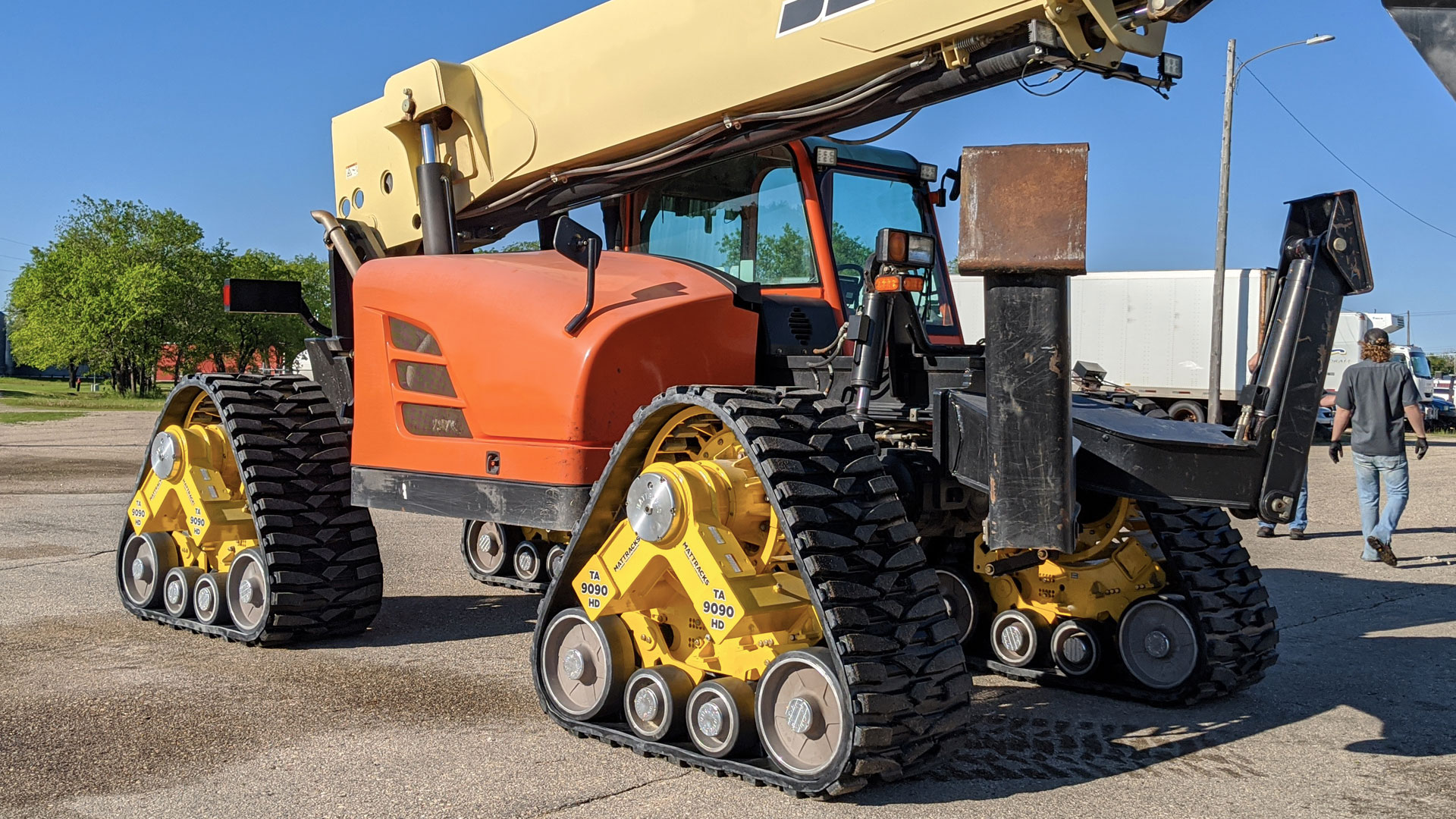

9090-RR Series Tracks on a JLG G12-55A Telehandler

9000-FG-2030

The FG system is designed for front wheel assist tractors that need added flotation, traction or reduction in compaction. With a 20" wide track in the front and 30" track in the rear, this system offers close to 5,000 square inches of ground surface contact, making it an ideal system for snow grooming or farming applications that require reduced compaction. The FG system is a bolt on conversion kit that requires no modification to the tractor. Tracks can be easily removed and replaced with tires if needed. System can be made to fit all tractor brands: Case IH, Challenger, John Deere, Massey Ferguson, New Holland, and more.

9000-FG-2030 (Front) Snow Grooming

GVW	25,000 lbs
Frame	Steel
GCSA	1,602 in²
Track Width	20"
Suspension	Yes

9000-FG-2030 Specsheet

9000-FG-2030 (Rear) Snow Grooming

GVW	25,000 lbs
Frame	Steel
GCSA	2,412 in²
Track Width	30"
Suspension	Yes

9000-FG-2030 Specsheet

9000-LM

The LM system is designed for front wheel assist tractors that need added flotation, traction or reduction in compaction. Features single ramps for additional clearance. With a 20" wide track in the front and 30" track in the rear, this system offers close to 5,000 square inches of ground surface contact, making it an ideal system for snow grooming or farming applications that require reduced compaction. The LM system is a bolt on conversion kit that requires no modification to the tractor. Tracks can be easily removed and replaced with tires if needed. System can be made to fit all tractor brands: Case IH, Challenger, John Deere, Massey Ferguson, New Holland, and more.

9000-LM (Front Track) Snow Grooming

Frame	Steel
GCSA	1,586 in²
Track Width	20"
Suspension	Yes

9000-LM Specsheet

9000-LM (Rear Track) Snow Grooming

Frame	Steel
GCSA	2,325 in²
Track Width	30"
Suspension	Yes

9000-LM Specsheet

9000L-FG-2030 Series Tracks on a John Deere 6145R

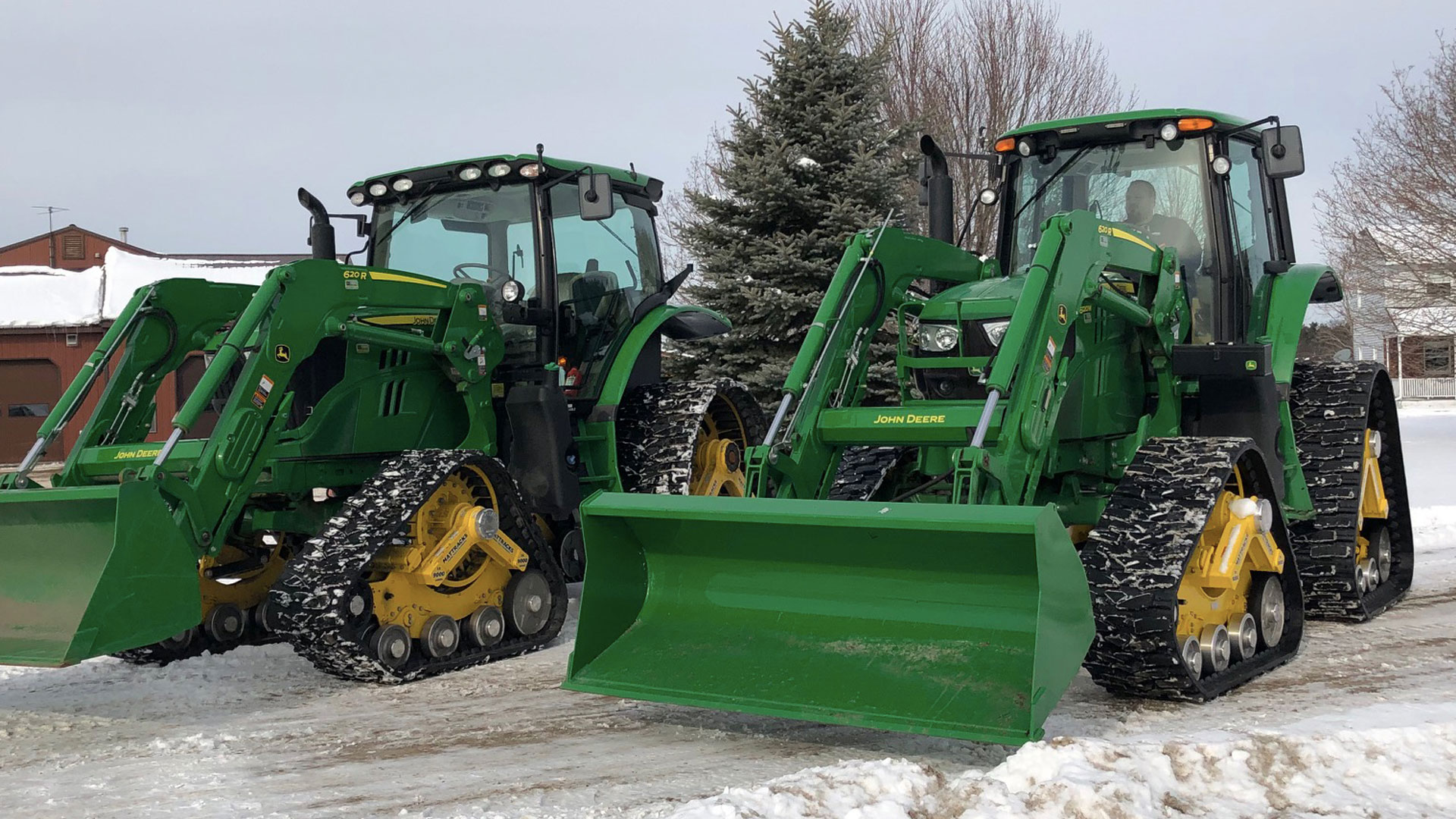

9000-LM Series Tracks on a John Deere 6120M

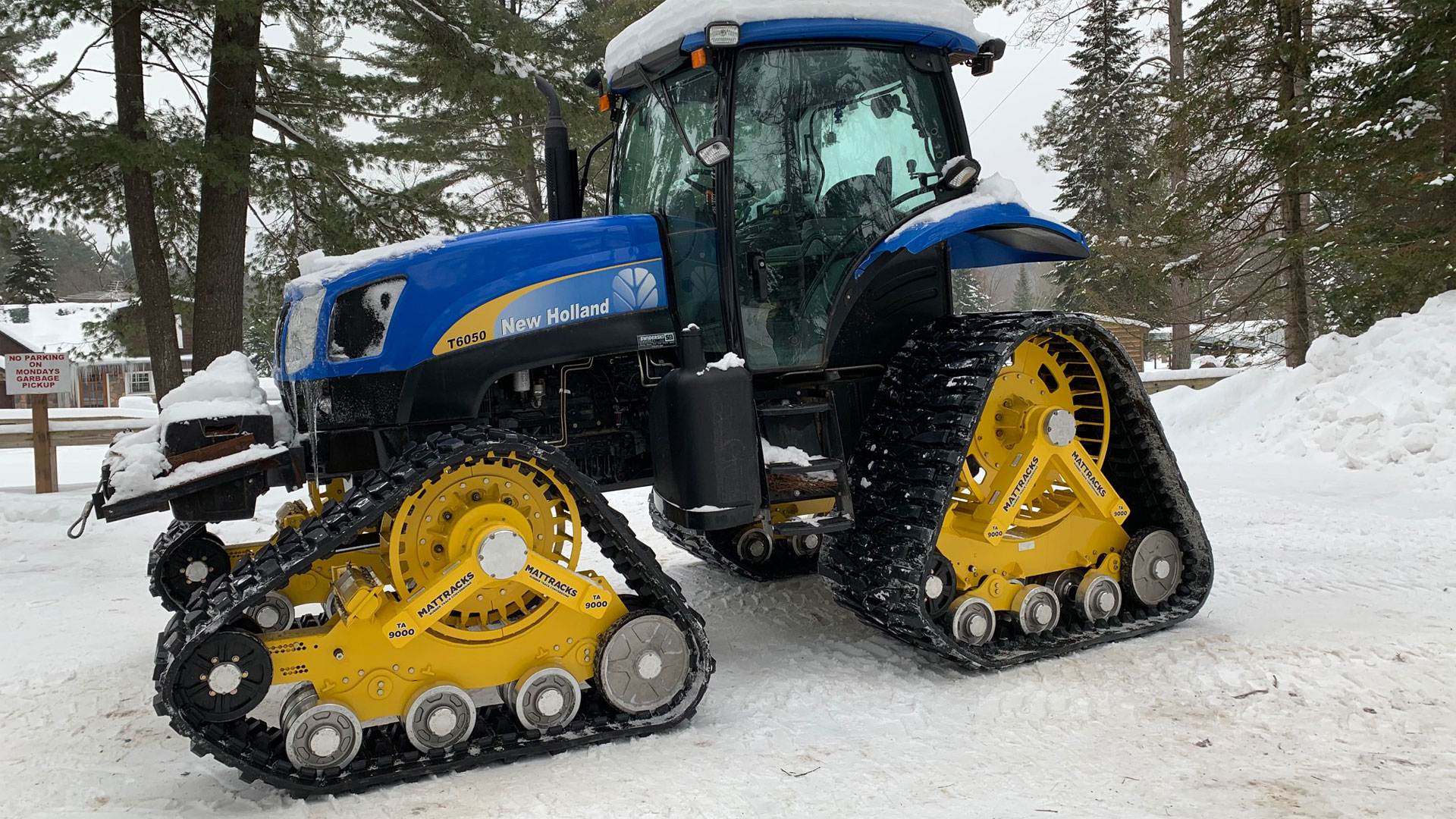

9000-LM Series Tracks on a New Holland T6050

9090-J0

Specifically designed for combines, The J0 track system has an axle height of 40.6" and a 30" wide track that offers a ground contact total of 6,258 in²

9090-J0 Combines

GVW	50,000+ lbs
Frame	Steel
GCSA	6,258 in²
Track Width	30"
Suspension	Yes

9090-J0 Specsheet

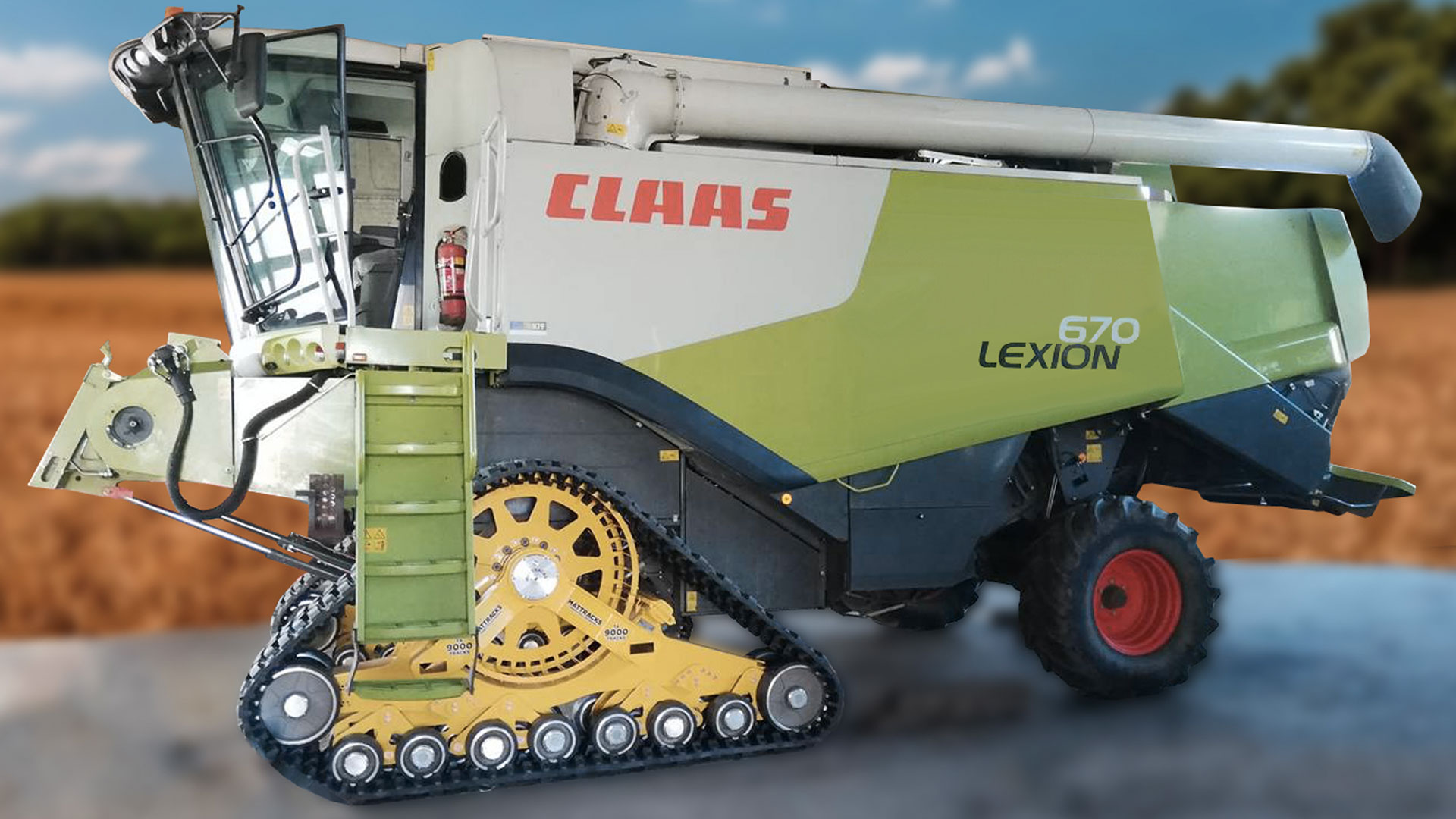

9090-J0 Series Tracks on a Claas Lexion 670

9090-BB

The BB system is designed for heavy machinery. Each track corner is rated for 10,000 lbs static loads. Track system has a low profile with an axle height of 27" and the 20" wide track offers over 1,200 in² of ground contact per corner

9090-NN

The NN system is designed for heavy duty vehicles. Each track corner is rated for 17,500 lbs. Track system features an axle height of 44.68" and the 24" wide track offers over 3,200in² of ground contact per corner

9090-BB Harvesters

GVW	40,000 lbs
Frame	Steel
GCSA	4,864 sq in
Track Width	20"
Suspension	Yes

9090-BB Specsheet

9090-NN

GVW	70,000 lbs
Frame	Steel
GCSA	3,200 sq in
Track Width	24"
Suspension	Yes

9090-NN Specsheet
